2T Price of liquid soap making machine Stainless Steel High Shear Homogenizing Cosmetic Emulsifying mixing machine
You are here: Home » Products » Vacuum Emulsifier » 2T Price of liquid soap making machine Stainless Steel High Shear Homogenizing Cosmetic Emulsifying mixing machine

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

2T Price of liquid soap making machine Stainless Steel High Shear Homogenizing Cosmetic Emulsifying mixing machine

Working mode of vacuum emulsifier
Vacuum emulsifier is a type of emulsifier, and its special feature is that the operating principle of the emulsifier is to shear, disperse, and impact the material through the high-speed rotation of the homogenizer head connected to the engine. The materials processed through operation will become delicate and blended. And the vacuum emulsifier refers to performing these operations in a vacuum state.
During the production process, air may be mixed into the product, causing it to bubble up, bacterial contamination, oxidation, and an uneven appearance. However, using a vacuum emulsifier will not result in this situation. Under vacuum conditions, the emulsion will be evenly dispersed and no more bubbles will be mixed in during the production mixing process, ensuring the delicacy and stability of the product.
Video outgoing-inspection:
Core Components:
Color:
After-sales Service :
Material:
Application:
Availability:
Quantity:
  • SPX-037

  • SIPUXIN

Product Description

Shearing effect of vacuum emulsifier

The shearing effect of vacuum emulsifier will change the final effect of the material. The sharpness of the shear blade, the hardness of the blade, the gap between the rotor and the stator, the diameter of the particles that can pass through, and the relative speed of the cutting blade will affect the fineness of the material. Generally speaking, the sharpness, hardness, gap between the rotor and the stator, and the diameter of the particles passing through the blade of the vacuum emulsifier are relatively fixed. Therefore, the only thing that can be controlled is the relative speed of the cutting blade, which is mainly reflected in the circumferential linear speed of the rotor. The faster the speed, the higher the density of cutting and impact, and the finer the material.

The shearing speed is not the faster the better

The linear speed of the vacuum emulsifier is not the faster the better, and the optimal speed must be grasped. If the speed is too fast, the logistics will become very small, the materials will gather repeatedly, and the production of the materials will become unsatisfactory. When making and producing, the speed should be adjusted according to the nature and output of the materials.

The development of emulsifiers is gradually accelerating in modern society. Improving production quality and efficiency is the most basic element of vacuum emulsifiers. As the vacuum emulsifier moves forward, it will continue to improve its technology, enhance its quality, and its process will become more and more mature.


Machine weight
About 4000kg
Product name
Liquid soap /cosmetic paste cream making machine
Material
SUS304/316L
Function
Homogenizing and mixing machine
Driven Type
Steam or Electric heating
Type
Homogenizer and mixing, Heating, Emulsifier
Details Images

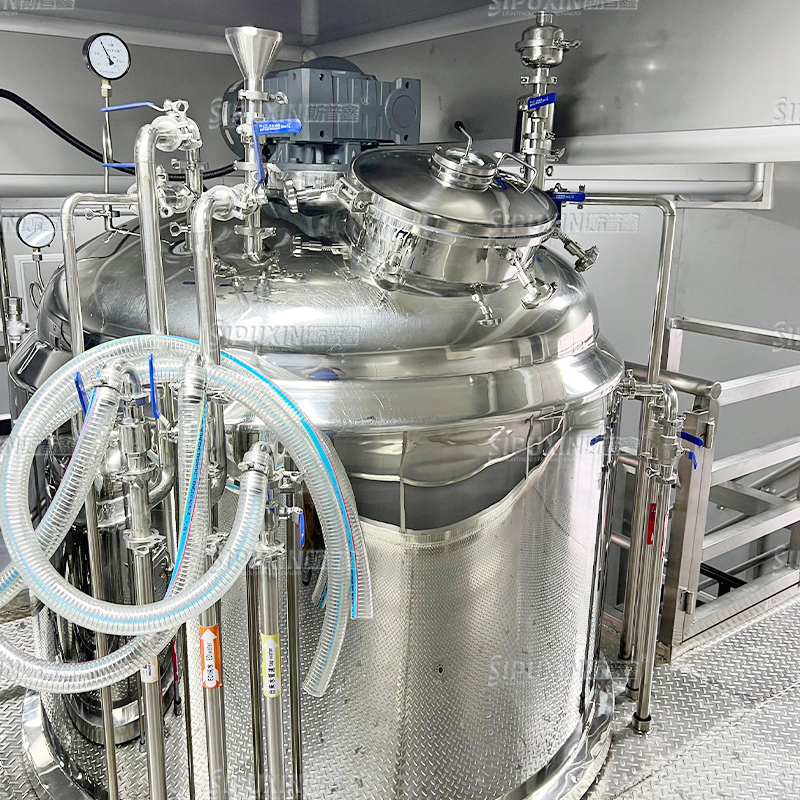

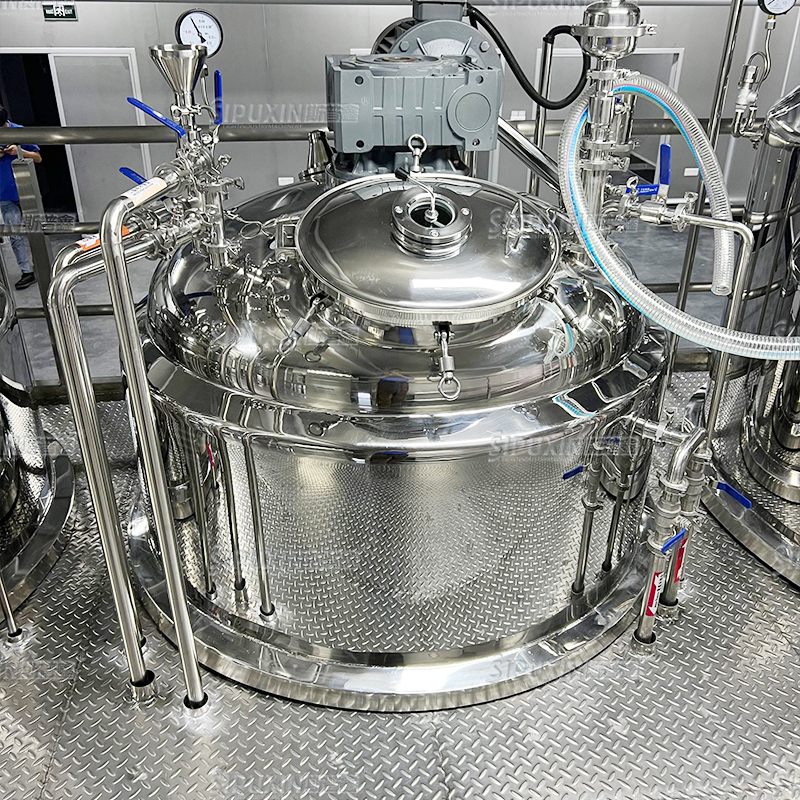

Top Accessories
These accessories have functions can well perform tasks such as observation and mixing during the production process.

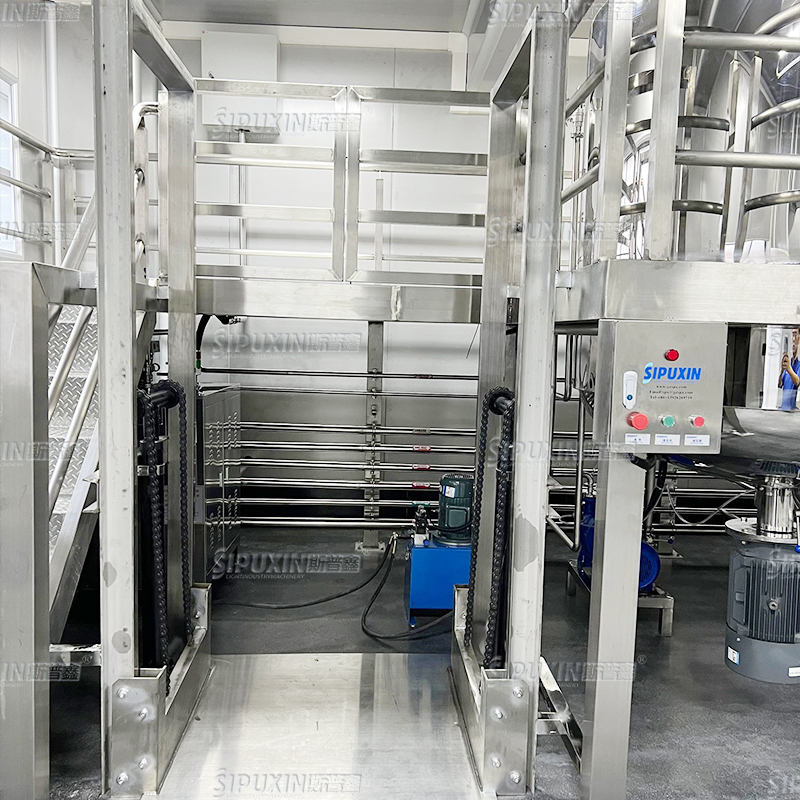

Loading system

the loading system is convient for the operator  to load the raw metarial to the paltform and transfer the raw metarial through the tude into the main tank.

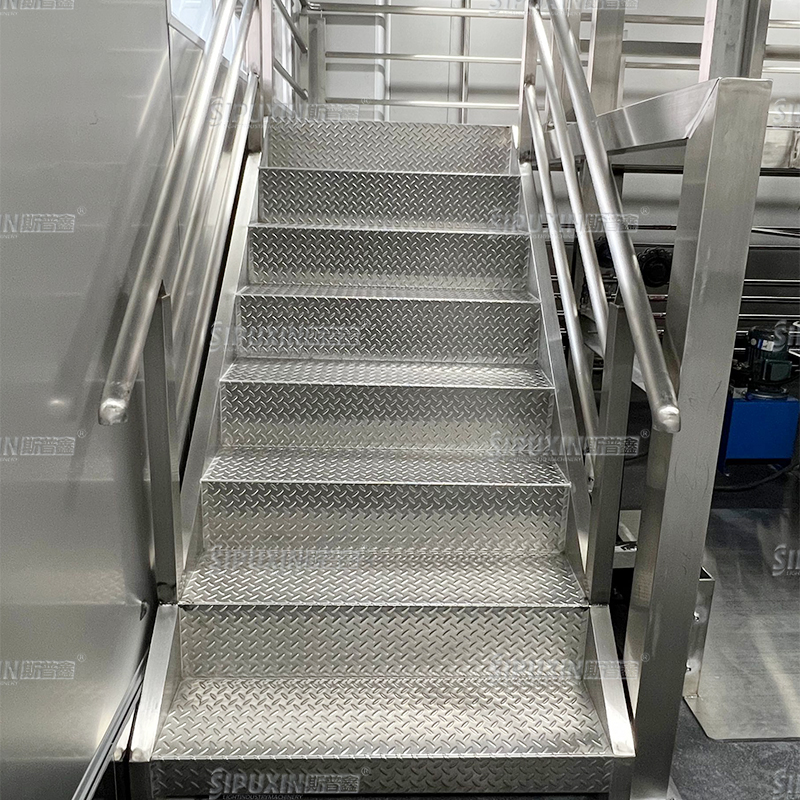

Operating Platform

Use safe,non-slip oilproot and waterproot operating platform to protect the safety of workers. To ensure that workers have access
to the tank for easy handling and dumping of materials.

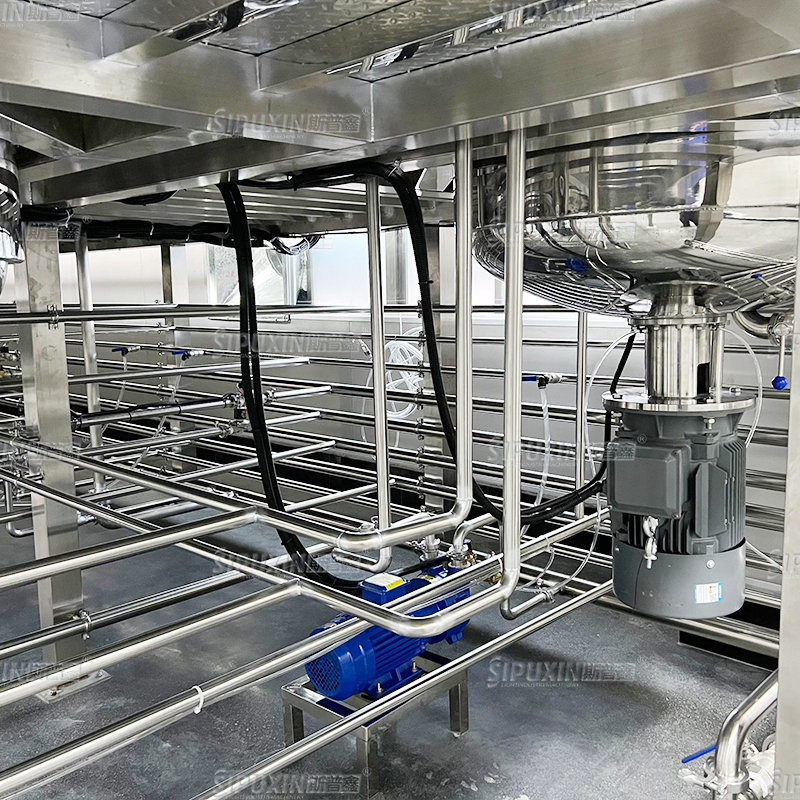

Siemens homogenizer motor
Using Siemens motor,the world famous brand,makes the macine longer service life.With high efficiency level and protection,it reduces energy consumption,allows customers to save costs,and is safe and reliable for customers
