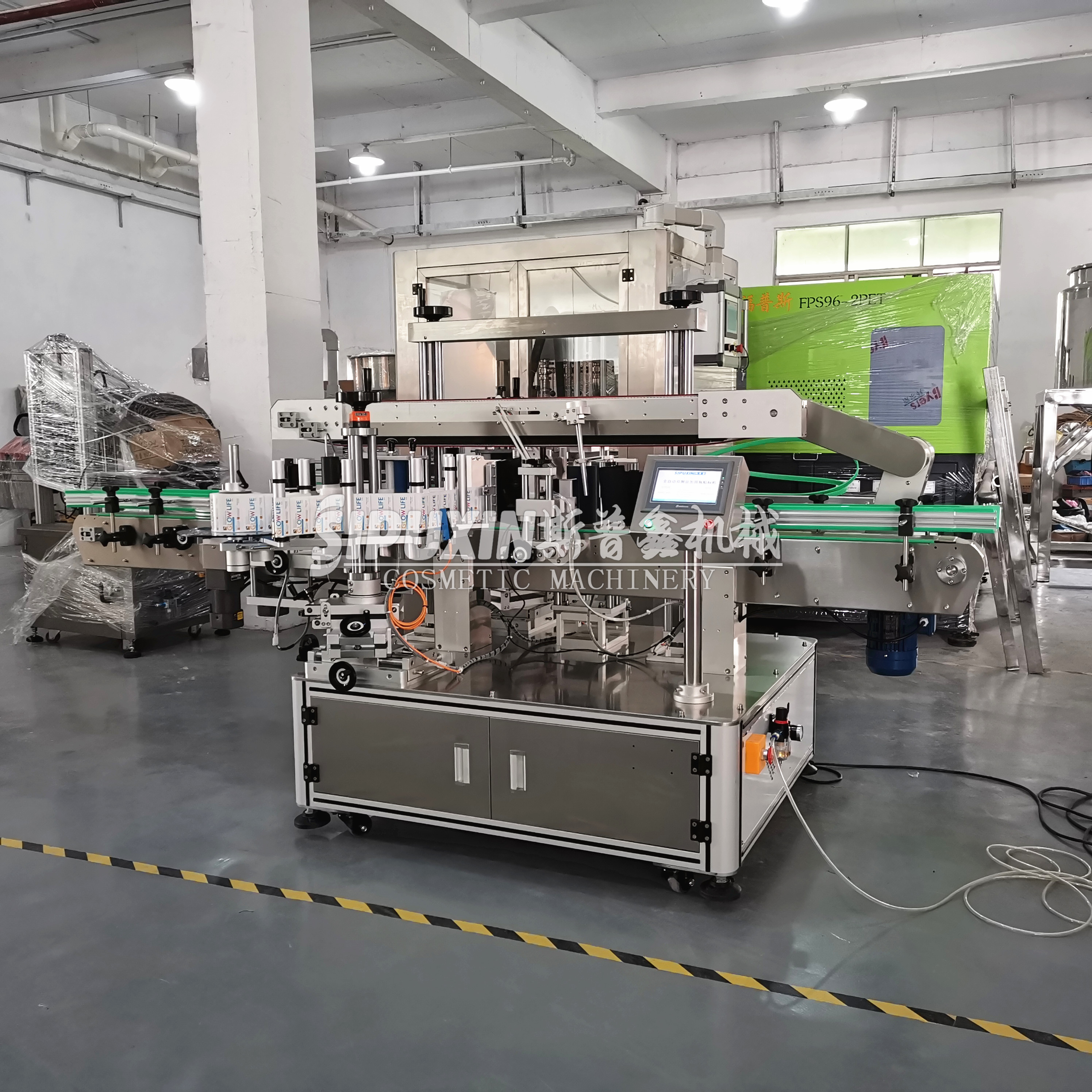

Universal Used Flat bottle double side labeling machine & Round bottle labeling machine

00:0202:57

Product Description
Performance
1. Be applicable to rectangular, square, round and flat bottles in double side labeling. 2.The independently shape structure is designed specially and independently to label irregular bottle in cosmetic industry, the optional air driving and roller labeling set can label round bottle precisely. 3.The shape belt can be inclined, and the labeling head can be adjusted at eight orientations, so the machine can be adjusted successfully in several minutes for any bottles. 4.The machine apply the famous serve motor, so it realizes real closed loop controlling and it avoids the phenomenon of the ordinary stepper motor, high-precision refinement, built-insoute encoder, all this is designed to improve the accuracy.
Application
The machine is applicable to rectangular, square, round and flat bottles in double side labeling.
Video outgoing-inspection:
Core Components: Motor, PLC:
Core Components:
Availability:
Quantity:
  • SPX-21

  • SPX

Product Description
Voltage
220V,Can customize according to the voltage in your factory
Control way
PLC +Touch screen
Suitable sticker roll
DN76mm, φmax 350mm
Machine rack
Stainless steel +aluminum profile
Labeling speed
45 bottle/min
Conveyor
114 wide POM chain belt
Details Images

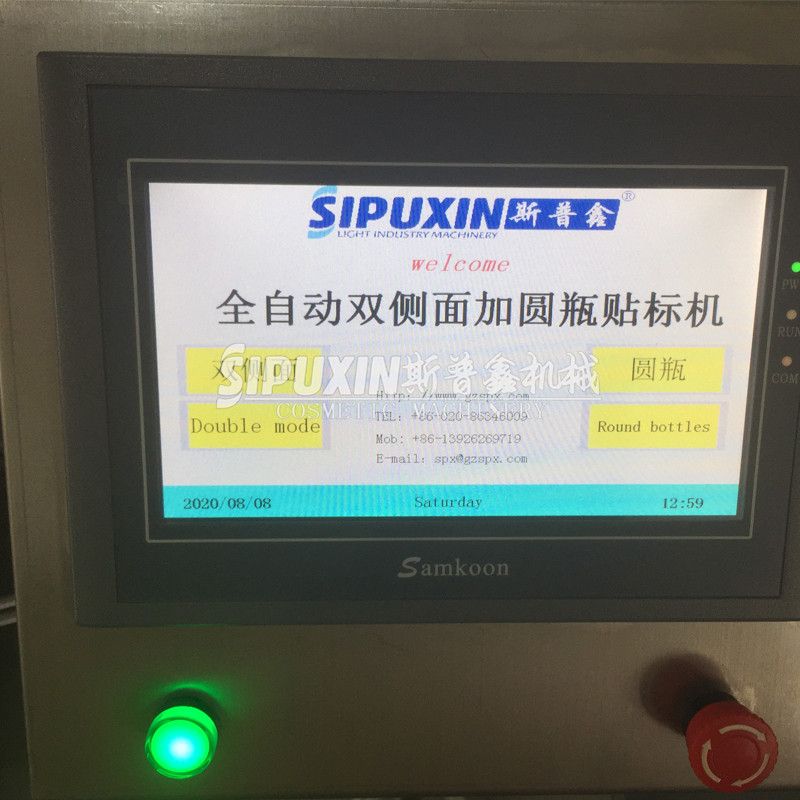

PLC screen

6061 aluminum alloy,304 stainless steel,easily control the labeling machine

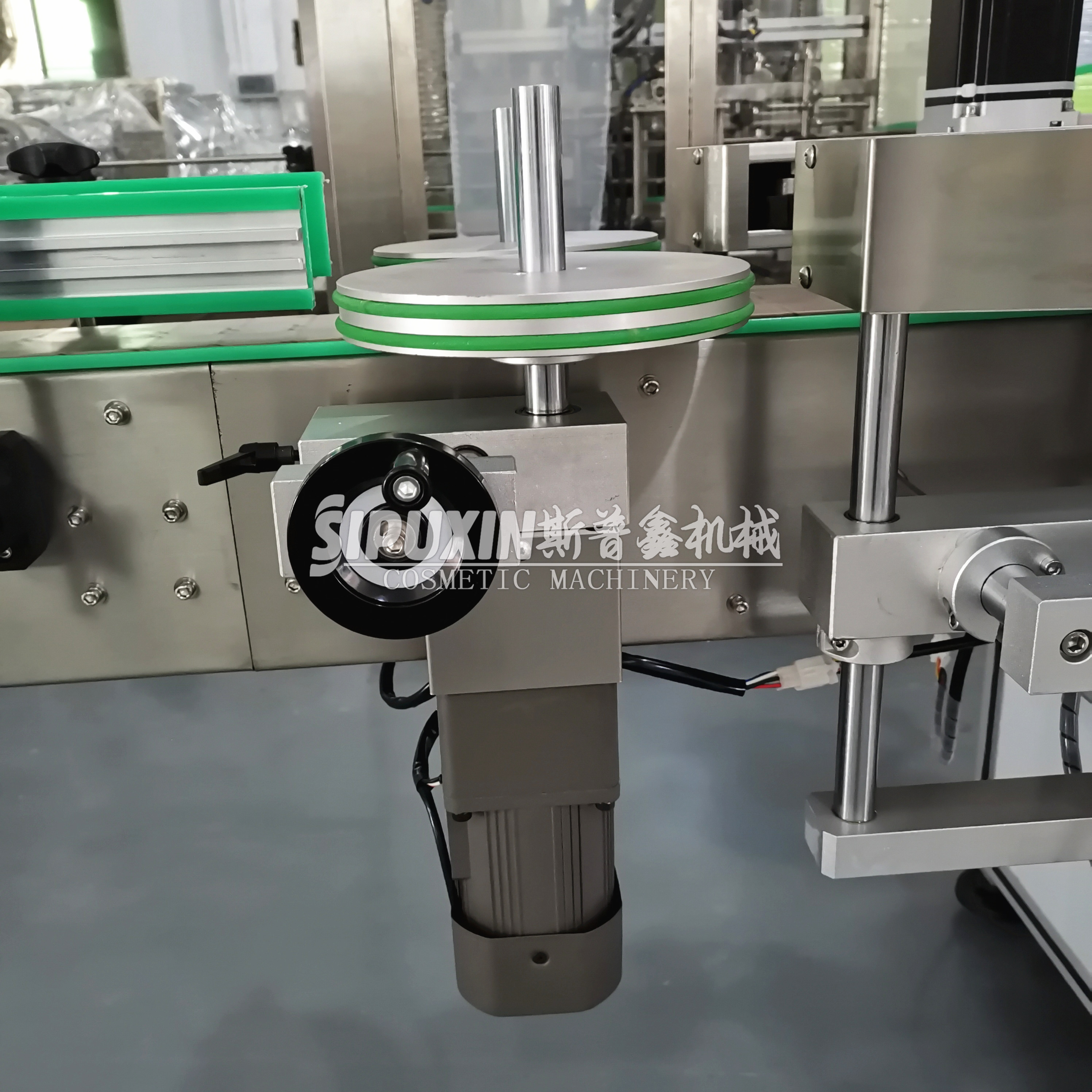

Bottle separation structure
Bottle separation structure Adjust the product spacing by adjusting the difference between motor speed and conveying speed.

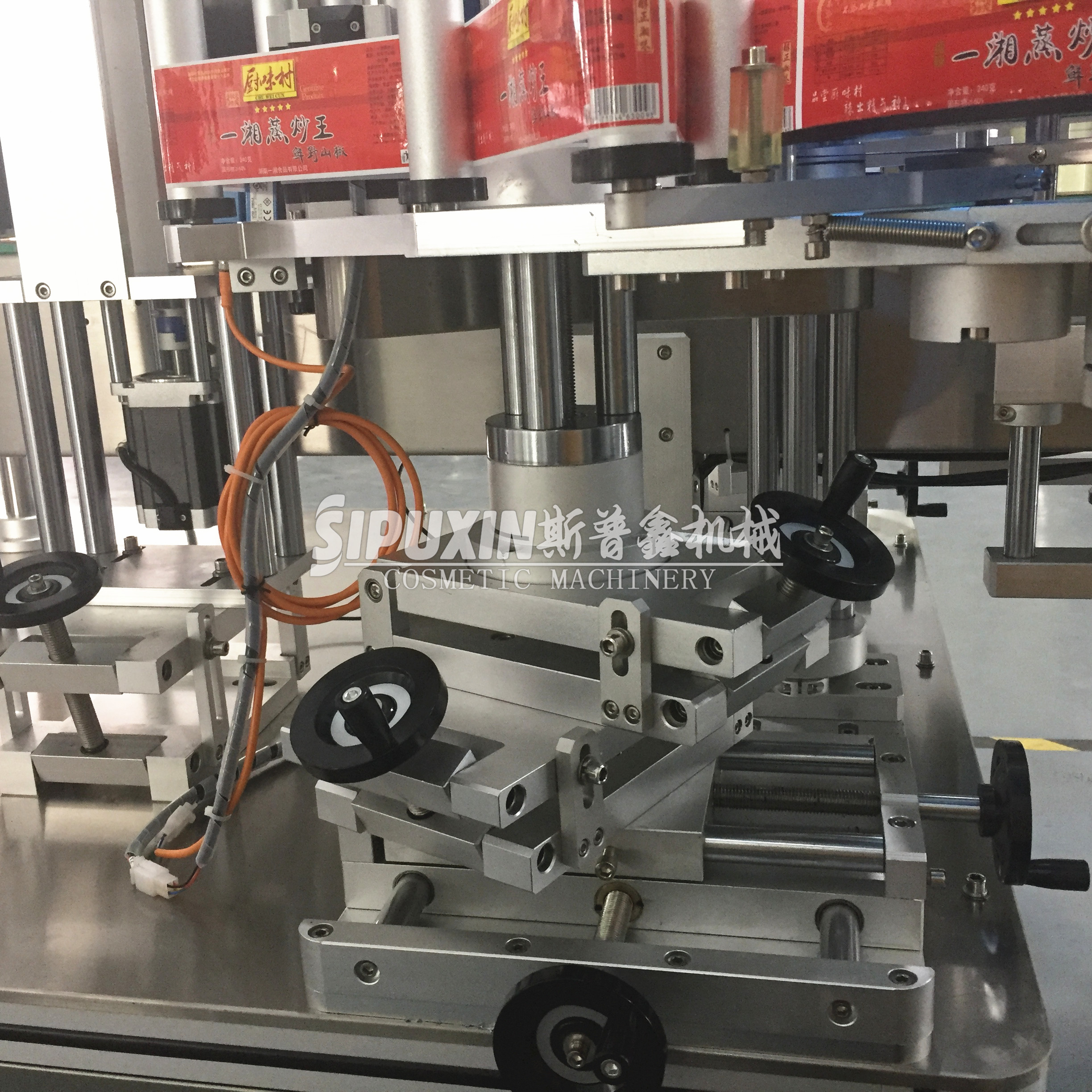

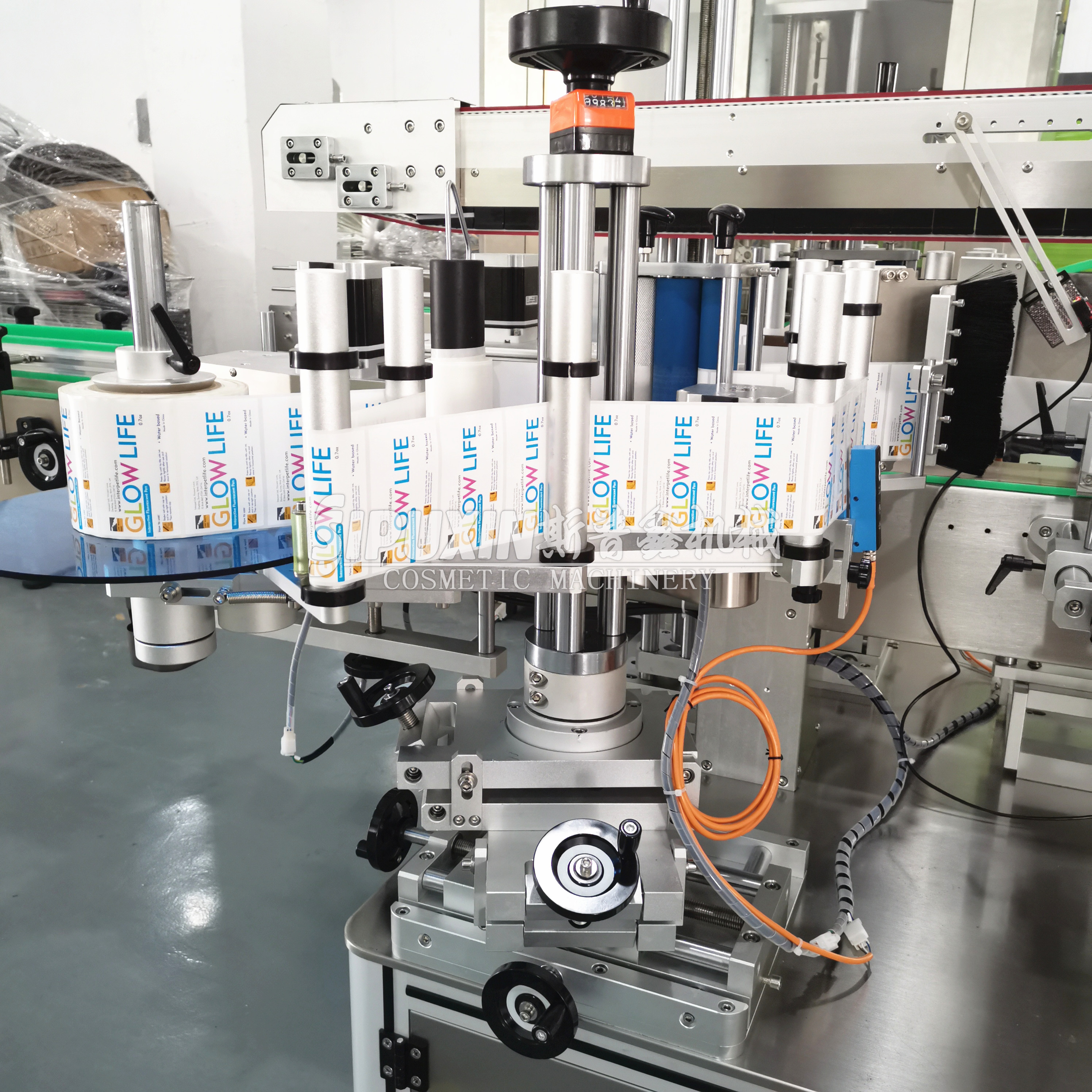

Adjust structure

The three bar structure is adopted, and the position of the label head can be adjusted from six angles

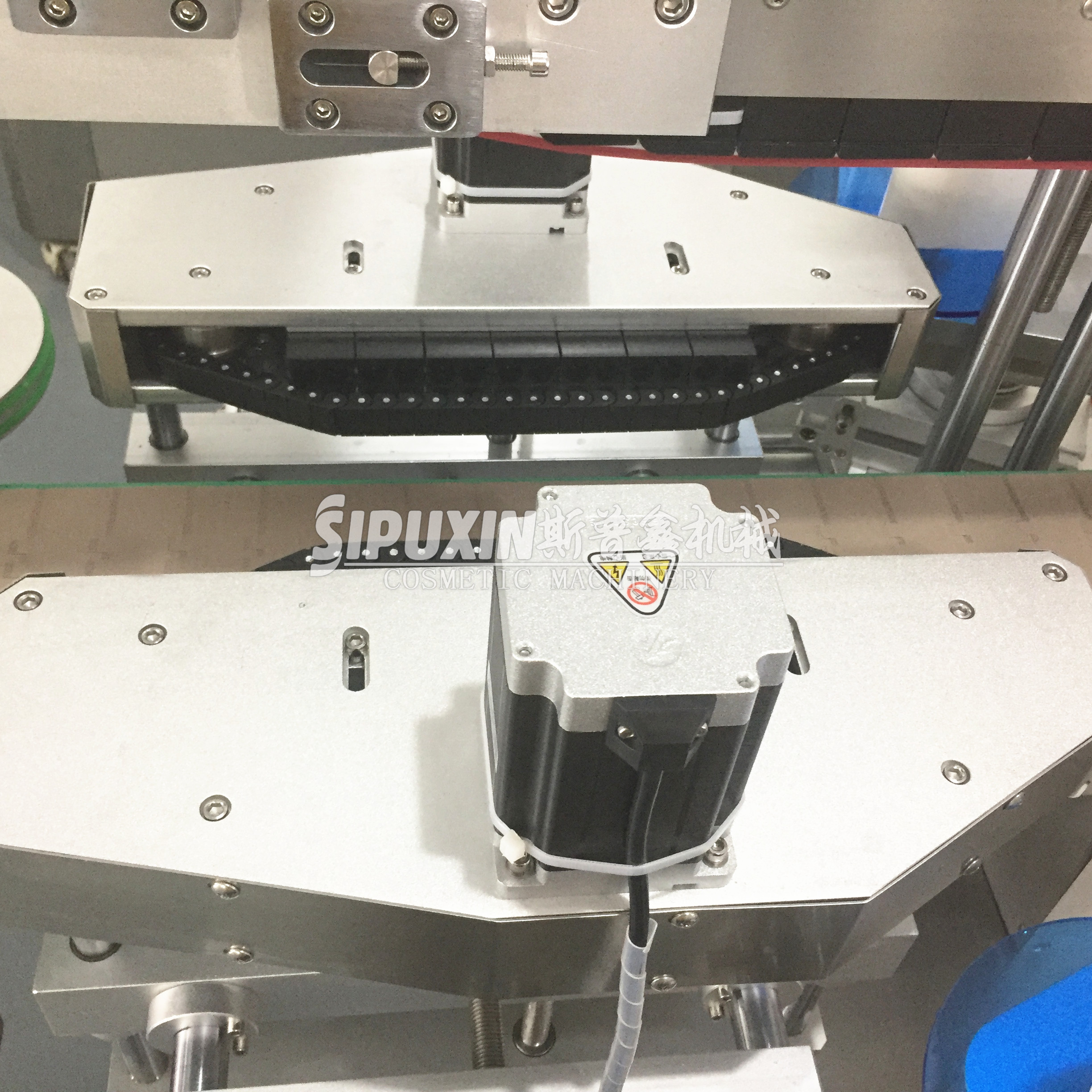

Roll paste device

It is mainly used to combine the label with the bottle body more closely. It consists of sponge board and rolling belt.


Conveyor belt


motor
The conveyor belt is used to drive the products to be labeled to the labeling area and send the labeled products out of the labeling area.

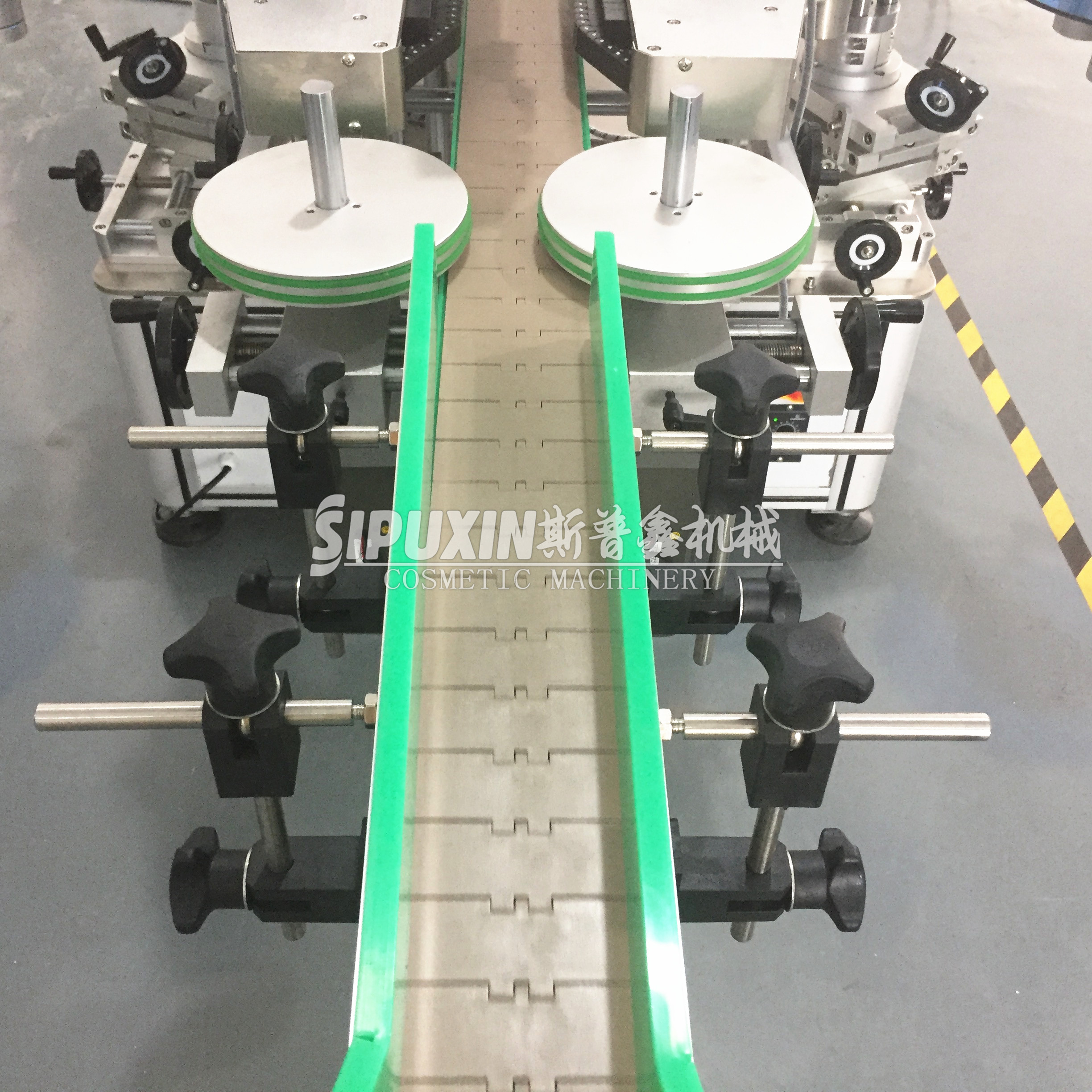

Guide chain

Through chain guide structure The left and right positions of the product are corrected so that the product is transported in a straight line.
