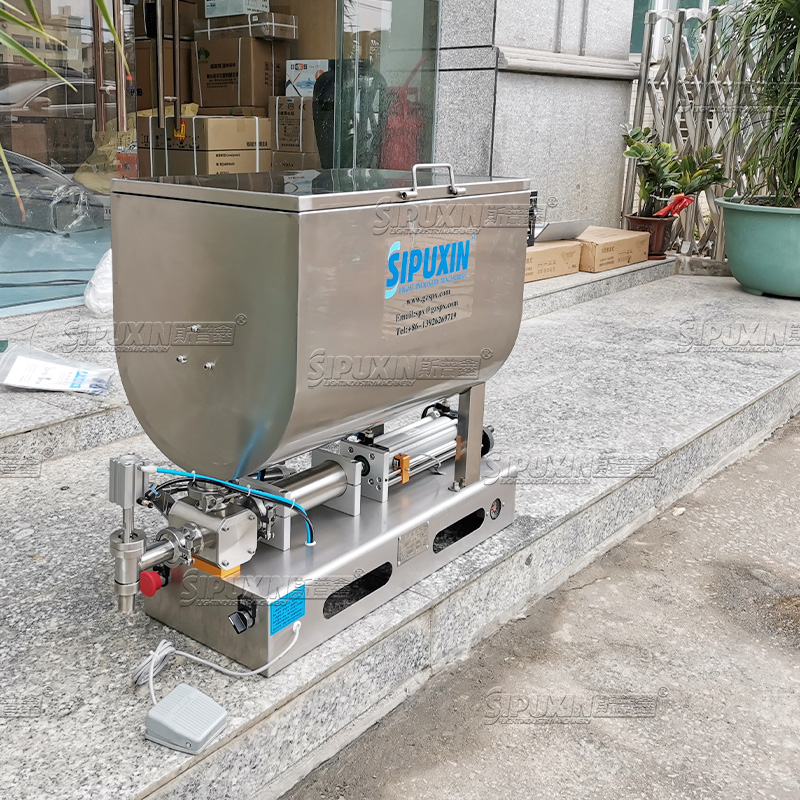

U Type Semi-automatic Hopper Syrup Honey Tomato Viscous Chili Paste Sauce Bottle Filling Machine Supplier with Mixer


00:0202:57

Product Description

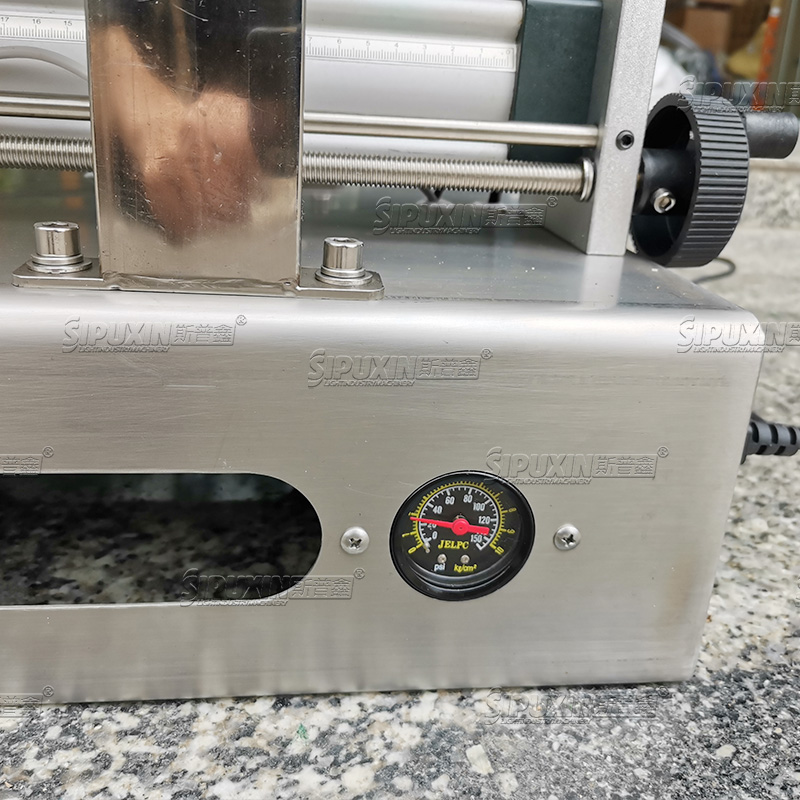

Product demonstration: ❖Working principle: It’s a semi-automatic piston filling machine; And piston is driven by the cylinder to extract and eject the products be filled, the three-way steering valve is used to control the flow of the product, and the cylinder stroke and filling volume are adjusted by moving the magnetic switch.

❖Control System: both pedal (semi-auto) and continuous automatic filling way, 2 filling ways could be changed arbitrarily.
❖ Suitable For: to fill food like chili sauce, peanut butter, daily care like cream, lotion and shampoo, pesticide, medicine etc.Mixing and Heating are also available.

Video outgoing-inspection:
Core Components: Motor, PLC:
Availability:
Quantity:
  • SPX-101

  • SPX

Product Description
Machine weight
About 50kg
Product name
food high viscosity filling machine
Material
SUS304/316L
Function
Semi automatic filling machine
Working capacity
2500-3000 bottles/hour(based on 500ml)
Driven Type
Electric and pneumatic
Bottle size
50mm≤φ≤115mm 160mm≤H≤320mm
Details Images

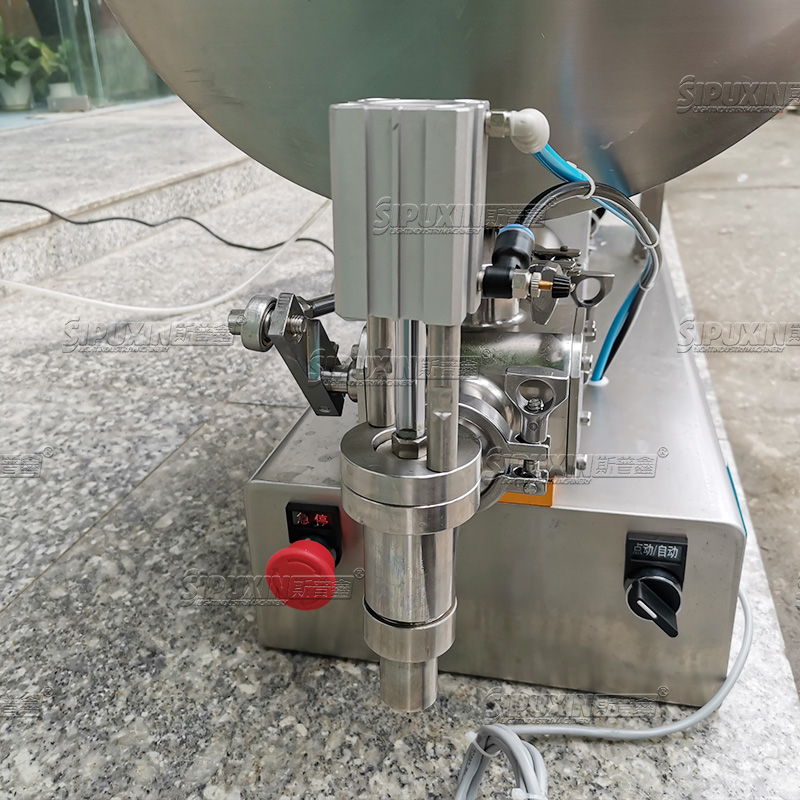

Anti-drop filling nozzle Don't jam Easy to clean

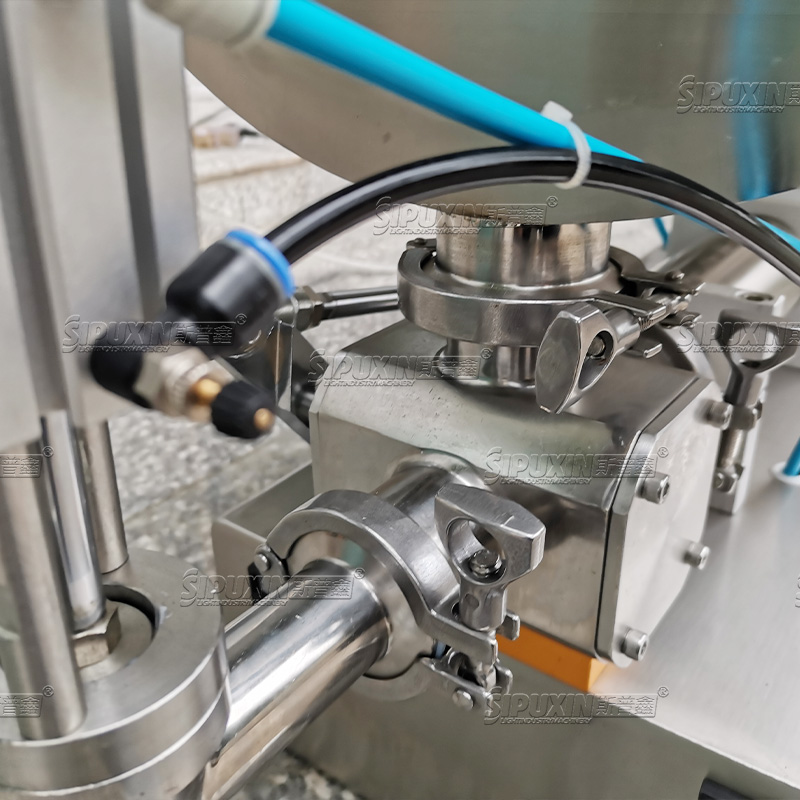

Precision check valve precision steel large rotary valve Strong motivation

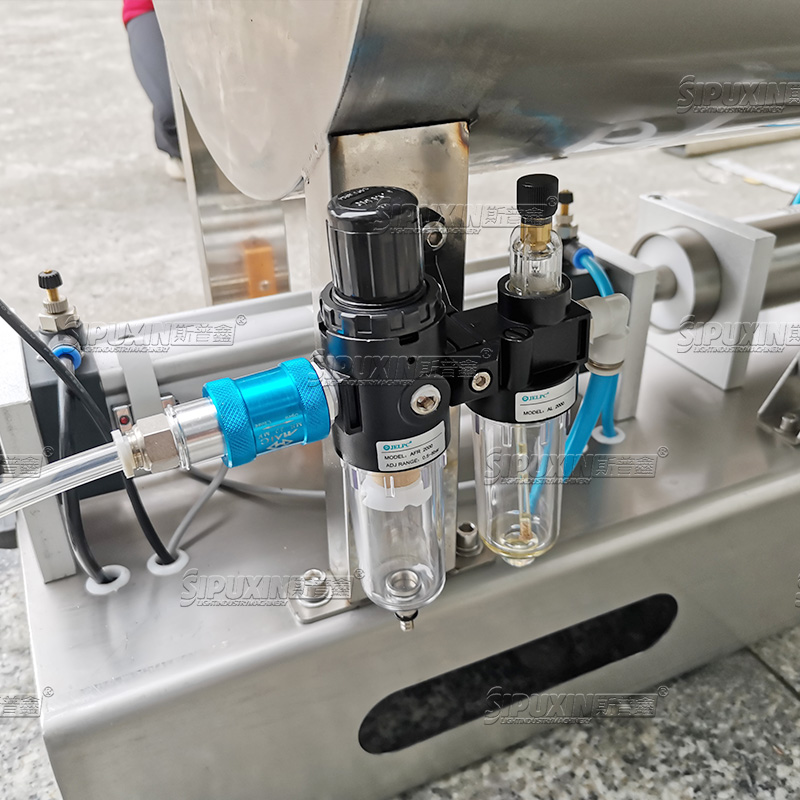

separator Increase oil and water Good separation effect


tor

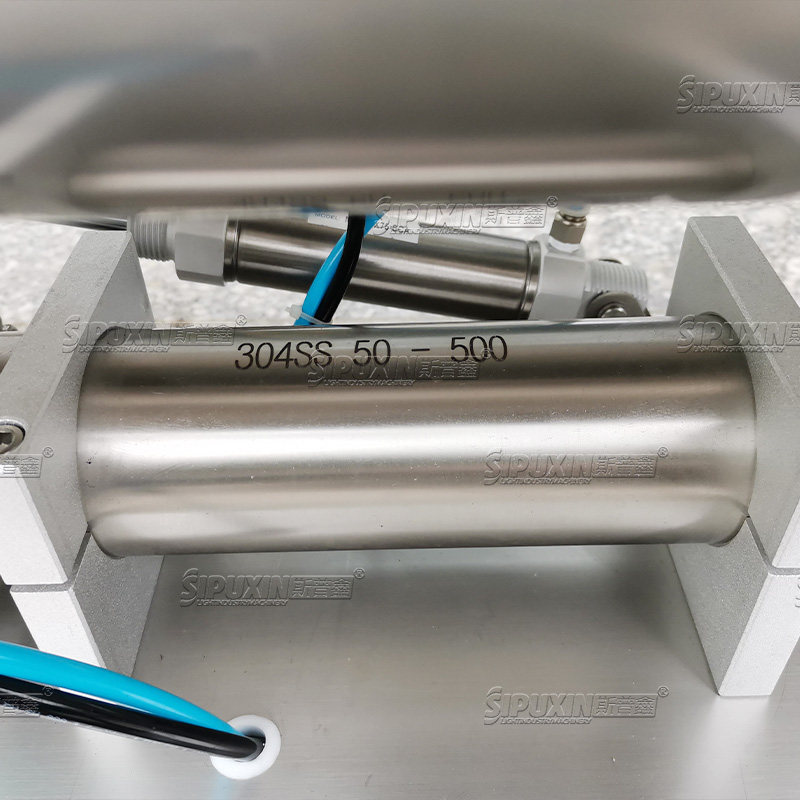

cylinder High power cylinder More efficient

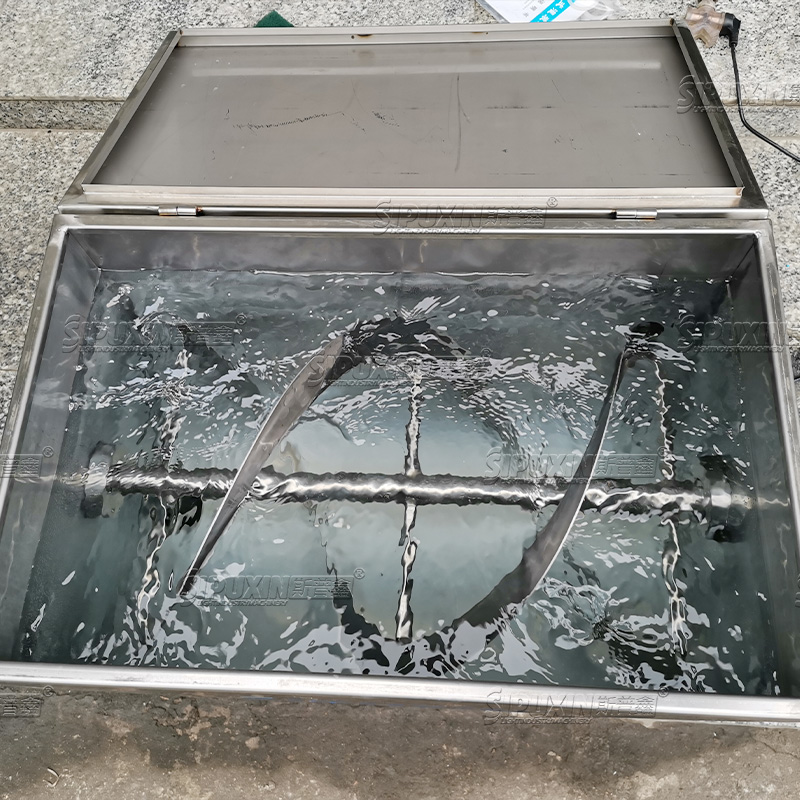

Mixing hopper 80L stainless steel hopper


tor
The micro switch Convenient foot switch Easy to operate
