Factory Price Full Automatic Wine Sticker Labels Round Bottle Honey/mayonnaise/hot Sauce / Labeling Machine

1. Be applicable to rectangular, square, round and flat bottles in double side labeling. 2.The independently shape structure is designed specially and independently to label irregular bottle in cosmetic industry, the optional air driving and roller labeling set can label round bottle precisely. 3.The shape belt can be inclined, and the labeling head can be adjusted at eight orientations, so the machine can be adjusted successfully in several minutes for any bottles. 4.The machine apply the famous serve motor, so it realizes real closed loop controlling and it avoids the phenomenon of the ordinary stepper motor, high-precision refinement, built-insoute encoder, all this is designed to improve the accuracy.
Speed:
Weight (KG):
Machine material::
Availability:
Quantity:
  • spx

Product Description
H935cdf0fca4749eb828439b586998aa7O

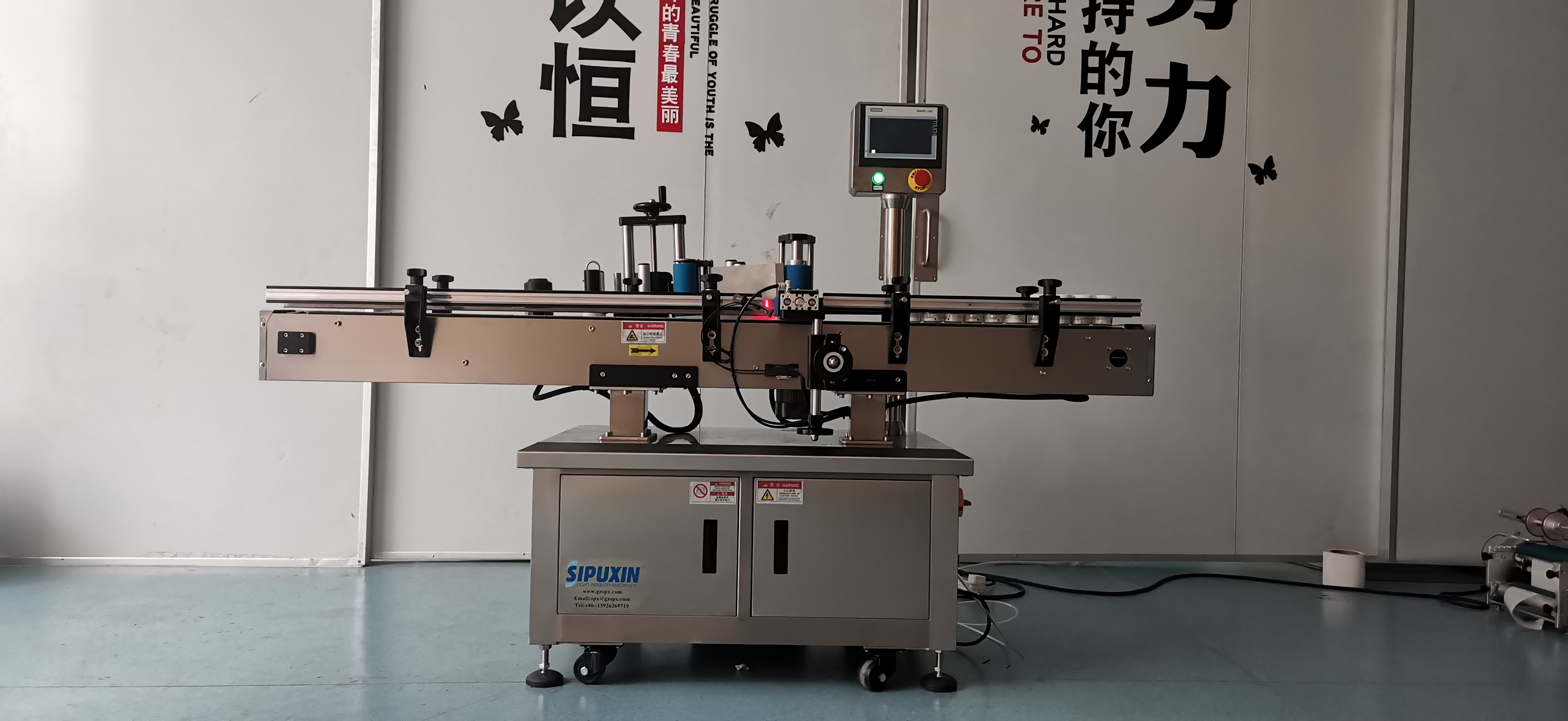

Guangzhou good quality automatic round bottle labeling machine
Performance
1. Be applicable to rectangular, square, round and flat bottles in double side labeling. 2.The independently shape structure is designed specially and independently to label irregular bottle in cosmetic industry, the optional air driving and roller labeling set can label round bottle precisely. 3.The shape belt can be inclined, and the labeling head can be adjusted at eight orientations, so the machine can be adjusted successfully in several minutes for any bottles. 4.The machine apply the famous serve motor, so it realizes real closed loop controlling and it avoids the phenomenon of the ordinary stepper motor, high-precision refinement, built-insoute encoder, all this is designed to improve the accuracy.
Application
The machine is  applicable to round bottles in double side labeling.
Voltage
220V,Can customize according to the voltage in your factory
Control way
PLC +Touch screen
Suitable sticker roll
DN76mm, φmax 350mm
Machine rack
Stainless steel +aluminum profile
Labeling speed
45 bottle/min
Conveyor
114 wide POM chain belt
Details Images
Details Images




PLC screen

6061 aluminum alloy,304 stainless steel,easily control the labeling machine





Bottle separation structure


Bottle separation structure Adjust the product spacing by adjusting the difference between motor speed and conveying speed.





Adjust structure

The three bar structure is adopted, and the position of the label head can be adjusted from six angles




Roll paste device

It is mainly used to combine the label with the bottle body more closely. It consists of sponge board and rolling belt.


Conveyor belt

motor

The conveyor belt is used to drive the products to be labeled to the labeling area and send the labeled products out of the labeling area.







Company Introduction
Company Introduction
About Us
Guangzhou Sipuxin Light Industrial Machinery Equipment Co.,Ltd.with Yangzhou Sipuxin Light Industrial Machinery Equipment Factory as a solid backing,specializing in cosmetics,food,daily chemicals and other industries complete sets of  equipmer manufacturers,to provide customers with a variety of special application fields of solutions .

The main products include vacuum homogenizing emulsifier, high-shear liquid detergent mixer,storage tank various cream,various bottle capping machine and other cosmetic and perfume whole-set production line,laboratory equipment,conveyor,etc.
